My friend Allen is in South America, but when he gets back I'd like to get him to put the bell in his lathe, and clean up the face. I also want to cut down the bottom section, and see if it will work as a dog bowl. Watch this space.
|
|

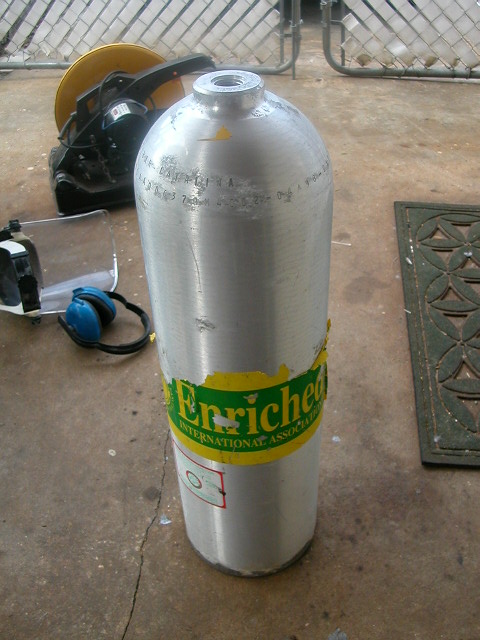

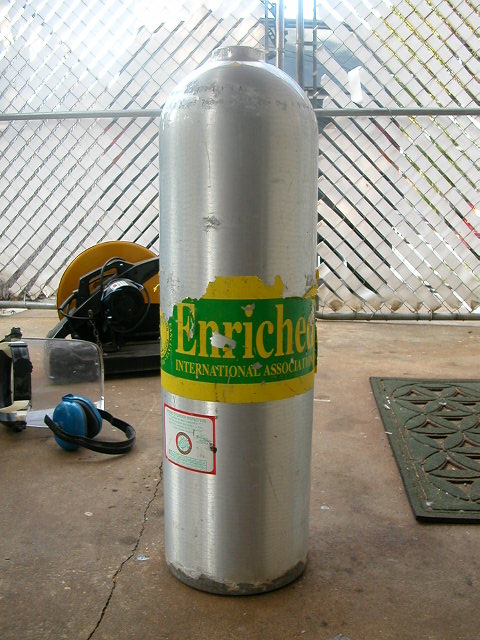

I go diving sometimes with Mark and Christine, and when Mark mentioned that one
of his aluminum 100 tanks had been condemned I asked if I could have it. I
had heard that if you cut the top section off a gas tank it will make a good
bell. That's mostly true for steel tanks, but I thought I'd try it with an
aluminum one.
|
|

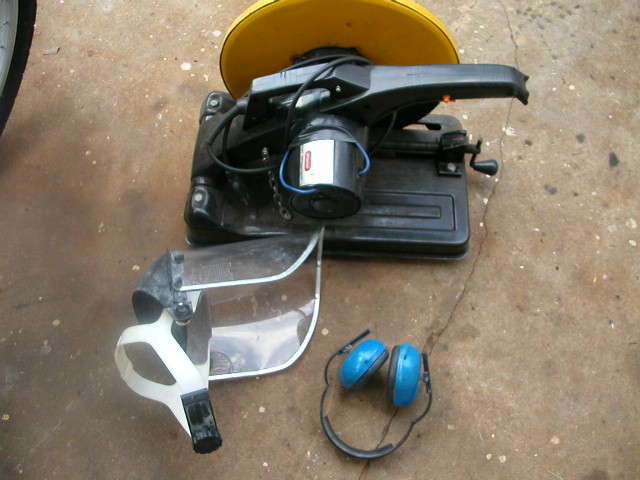

I figure the trusty Harbor Freight chop saw should be able to get through
aluminum. Always wear your safety gear.
|
|
|
|

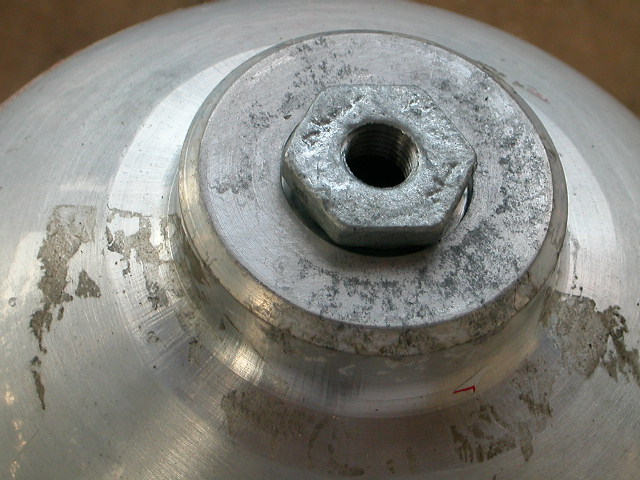

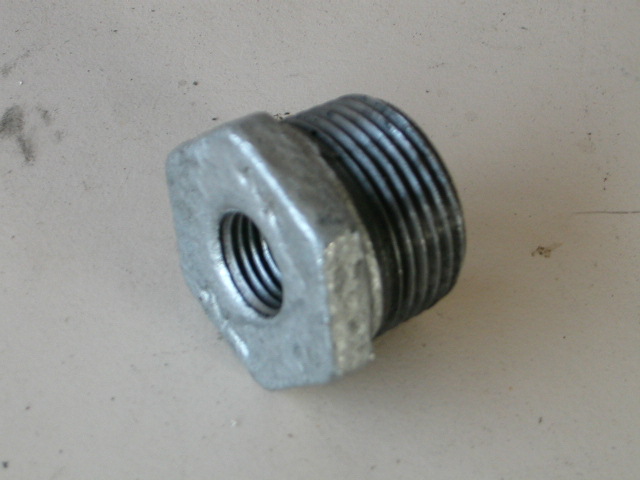

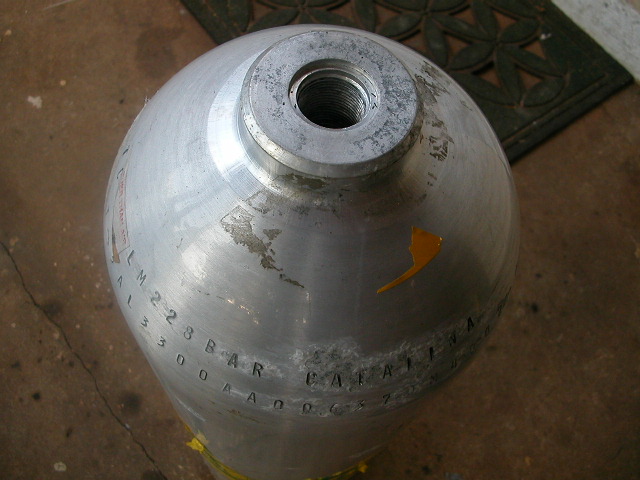

I wasn't sure how I was going to hang the bell, but a little google'ing turned
up the fact that most tanks use a 3/4" NPS thread, so I found this 3/4" to
1/4" reducer at Home Depot. I figured I could screw a lifting eye into it.
|
|

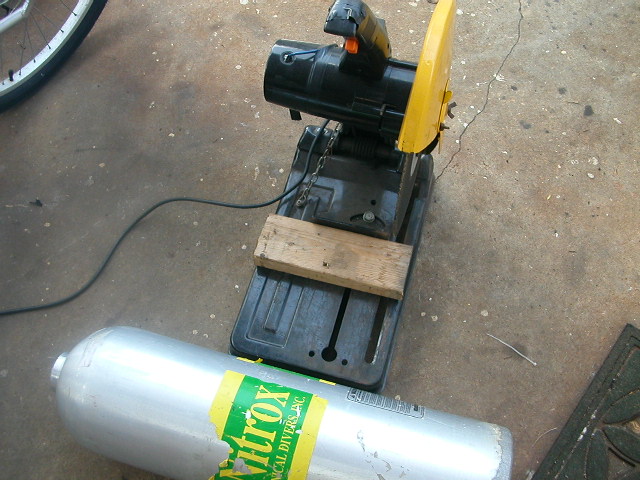

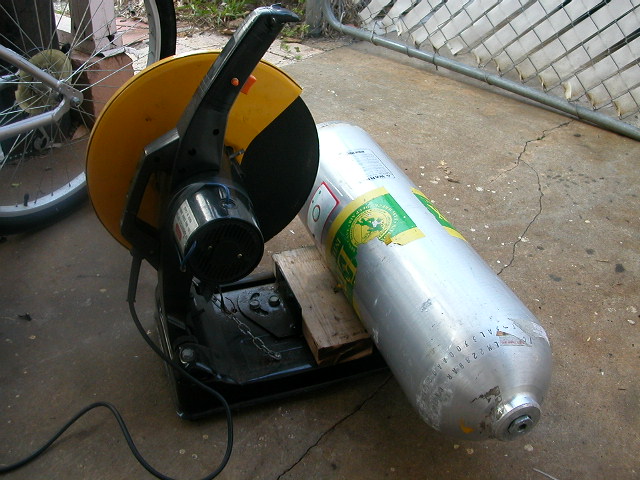

I had to remove the vise from the chop saw, and I cut a piece of 2x4 to act as
a guide for the tank, but it looked like it would fit in there.
|
|
|
|

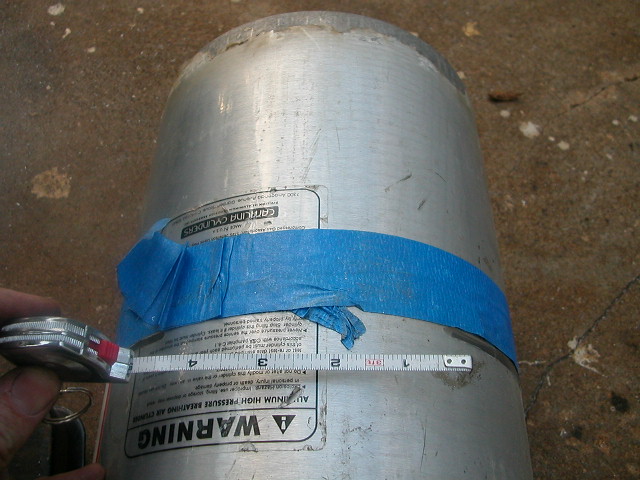

I just arbitrarily picked a line to cut on. I wanted to make sure the bell
portion would be long enough. I figured I could always cut it down.

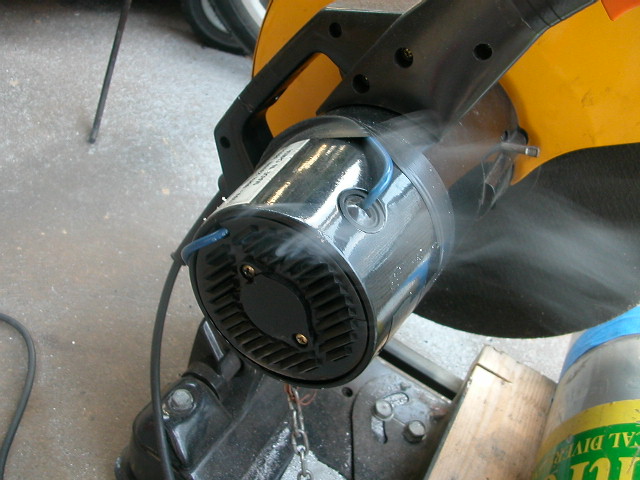

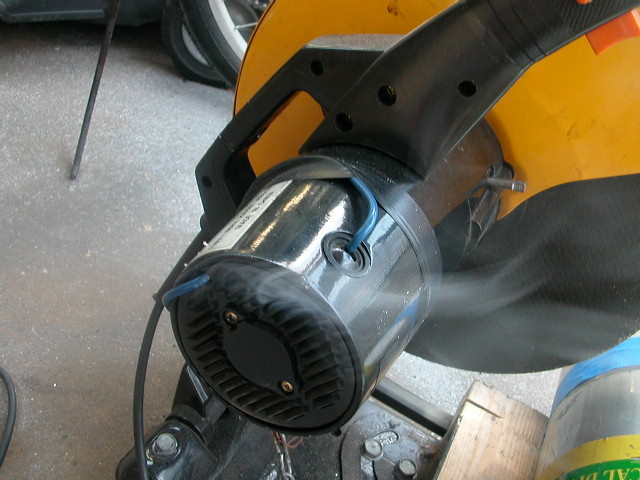

The chop saw worked okay for a while. There was a lot of noise and vibration,
but it cut most of the way around the tank. Then there was a lot of smoke
and no noise. There was only 4" left of circumference to cut, but the saw was
done. It took me three years, but I killed it. That was it for the day.
|
|
Next day I went to Harbor Freight. They had the same saw, that I paid $79 for

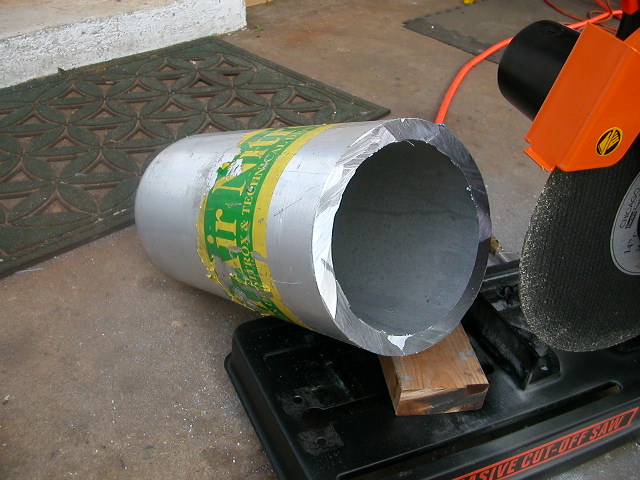

three years ago, on sale for $49. What a country. I unpacked the new saw

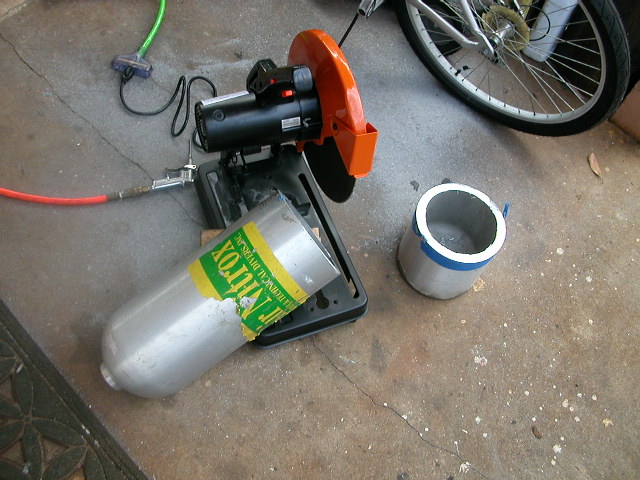

and unleashed it on the tank. It finished it off pretty quickly. And I had
a dandy new bowl. I think it might make a good dog dish if I cut it down a
couple inches.
|
|
|
|

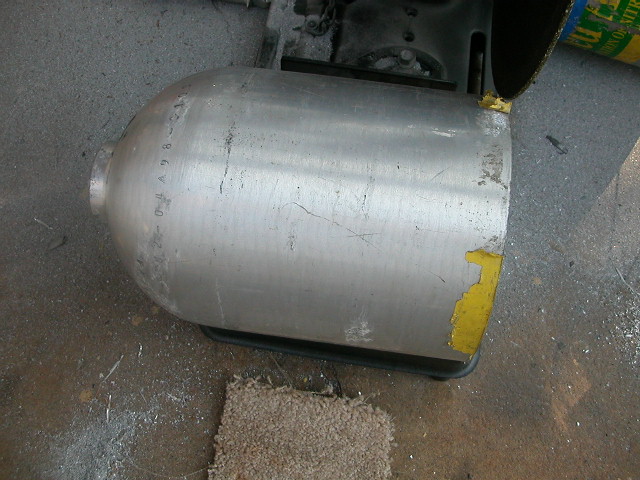

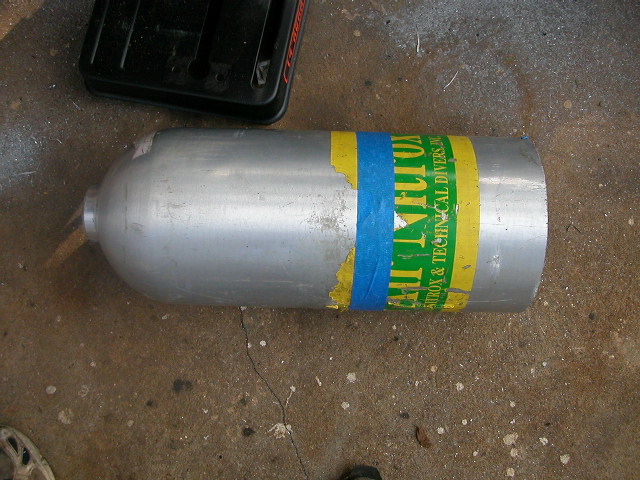

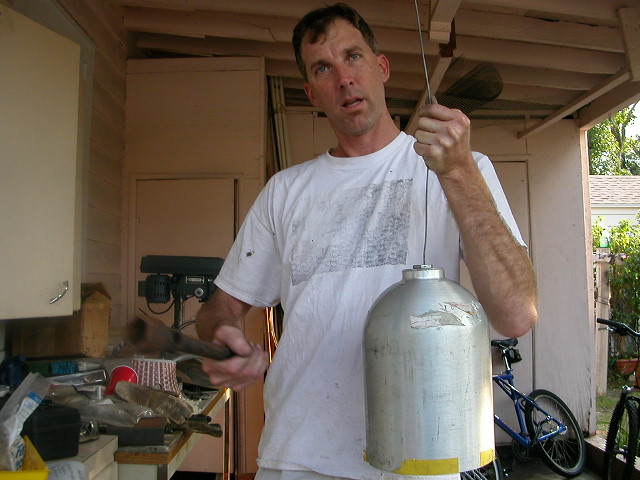

Unfortunately my new bell didn't sound very bell-like. It mostly sounded

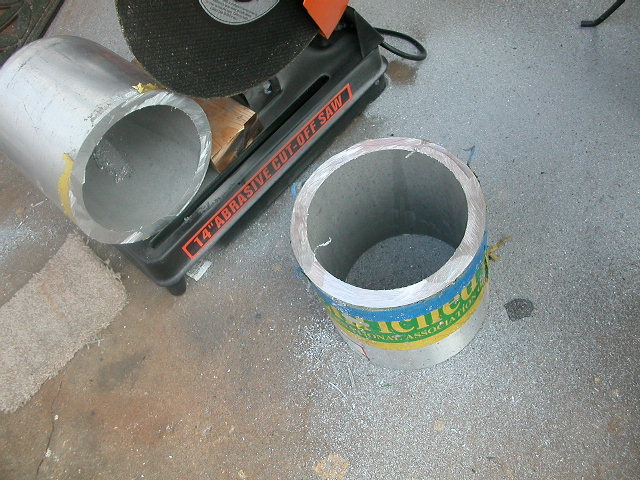

like banging on a scuba tank. But the bottom piece sounded better. So I
cut the top piece down to 12". It went faster now that I had the hang of it.
|
|

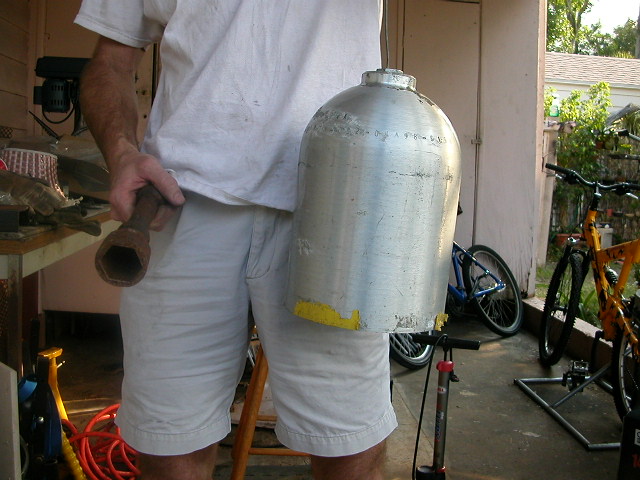

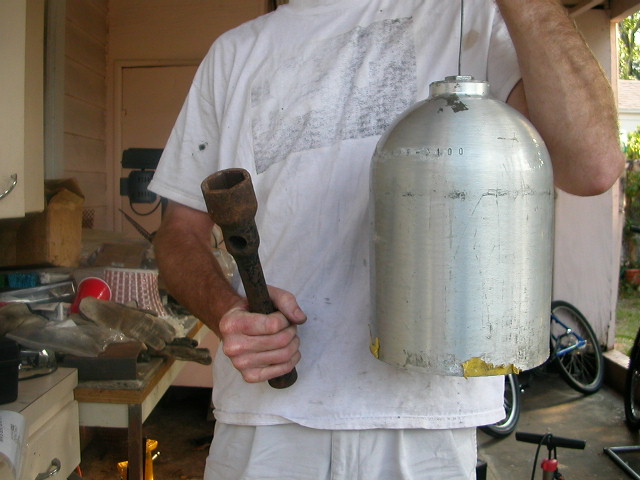

Okay, that sounded better. It still has the high, pinging noise of a scuba
tank, but it's much clearer now. I need to get a screw eye to go in the
adapter I have threaded in there now. Then I can hang the bell. I also need
another adapter the thread into the bottom of the valve opening, inside the
tank. I can put a screw eye into that, and hang a clapper from it.
